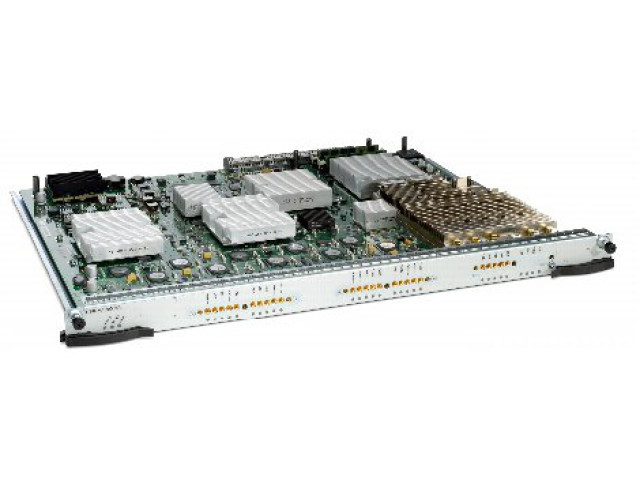

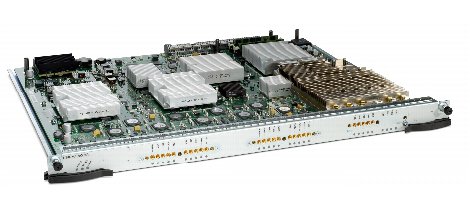

Cisco UBR-MC20X20V-20D= Netzwerk-Interface-Prozessor

Kompatibilität

Cisco uBR10012

Quality of Service (QoS) Support

Ja

MIB Unterstützung

IF-MIB (RFC-2233), IP-FORWARD-MIB (RFC-4292), ENTITY-MIB (RFC-2737), MIBII (RFC1213), EtherLike-MIB (RFC-2665), IGMP-MIB (RFC-2993), RMON-MIB (RFC-1757), IP-MIB, ENTITY-SENSOR-MIB, SNMPv2 SMI, SNMPv2-TC, SNMPv2-MIB, IANAifType-MIB, SNMP-FRAMEWORK-MIB (RFC-2571), SNMP-MPD-MIB (RFC-2572), SNMP-NOTIFICATION-MIB (RFC-2573), SNMP-TARGET-MIB (RFC-2573), SNMP-USM-MIB (RFC-2574), SNMP-VACM-MIB (RFC-2575), DOCS-IF-MIB (RFC 4546), DOCS-CABLE-DEVICE-MIB (RFC-2669), DOCS-BPI-PLUS-MIB (Rev 5), DOCS-QOS-MIB (Rev 4), DOCS-CABLE-DEVICE-TRAP-MIB, DOCS-SUBMGT-MIB (Rev 2), DOCS-IF3-MIB, DOCS-QOS3-MIB, DOCS-DRF-MIB, DOCS-LOADBAL3-MIB, DOCS-DIAG-MIB, DOCS-SUBMGT3-MIB, CLAB-TOPO-MIB, DOCS-MCAST-AUTH-MIB, DOCS-MCAST-MIB, DOCS-SEC-MIB, DOCS-IETF-BPI2-MIB, DOCS-IETF-QOS-MIB, CISCO-DOCS-EXT-MIB, CISCO-DOCS-REMOTE-QUERY-MIB, CISCO-DOCS-QOS-EXT-MIB, CISCO-CABLE-SPECTRUM-MIB, CISCO-CABLE-AVAILABILITY-MIB, CISCO-DOCS-EXT-CAPABILITY-MIB, CISCO-CABLE-WIDEBAND-MIB, CISCO-SYSLOG-MIB, CISCO-SMI-MIB, CISCO-TC-MIB, CISCO-PRODUCTS-MIB, CISCO-FLASH-MIB, CISCO-CONFIG-MAN-MIB, CISCO-CONFIG-COPY-MIB, CISCO-MEMORY-POOL-MIB, CISCO-BULK-FILE-MIB, CISCO-SONET-MIB, CISCO-TCP-MIB, CISCO-RTTMON-MIB, CISCO-FTP-CLENT-MIB, CISCO-IPMROUTE-MIB, CISCO-QUEUE-MIB, CISCO-IMAGE-MIB, CISCO-ENVMON-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-PRODUCTS-MIB

SPA online Einfügung und Entferung (OIR)

Ja

Management-Protokolle

SNMPv3

Abmessungen (BxTxH)

35,5 x 106,4 x 508 mm

Gewicht

7,26 kg

Betriebstemperatur

5 - 40 °C

Temperaturbereich bei Lagerung

-20 - 65 °C

Relative Luftfeuchtigkeit in Betrieb

10 - 90%

Luftfeuchtigkeit bei Lagerung

5 - 95%

Höhe bei Betrieb

-60 - 4000 m

Stromverbrauch (Standardbetrieb)

230 W

Sicherheit

CAN/CSA-C22.2 No. 60950-1 1st ed. / UL 60950-1 1st ed., EN/IEC 60950-1, AS/NZS 60950.1

Elektromagnetische Verträglichkeit

EN55022, Class B, CISPR 22, Class B, FCC 47CFR15, Class B, ICES-003, Class B, VCCI, Class B, AS/NZS CISPR 22, Class B, KN 22, Class B, IEC/EN61000-3-2 Power Line Harmonics, IEC/EN61000-3-3 Voltage Fluctuations and Flicker, IEC/EN61000-4-2 Electrostatic Discharge Immunity, IEC/EN61000-4-3 Radiated Immunity, IEC/EN61000-4-4 Electrical Fast Transient Immunity, IEC/EN61000-4-5 Surge, IEC/EN61000-4-6 Immunity to Conducted Disturbances, IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
