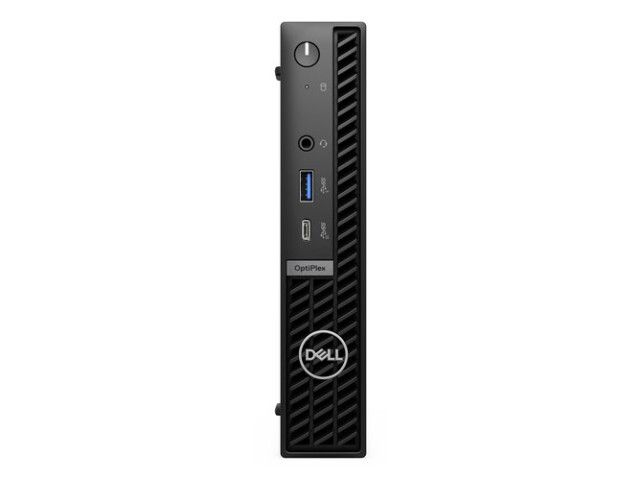

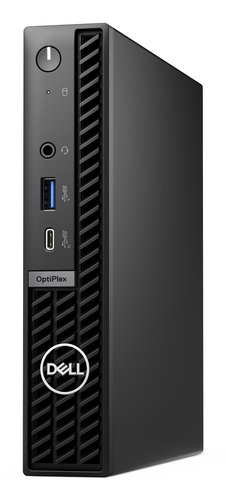

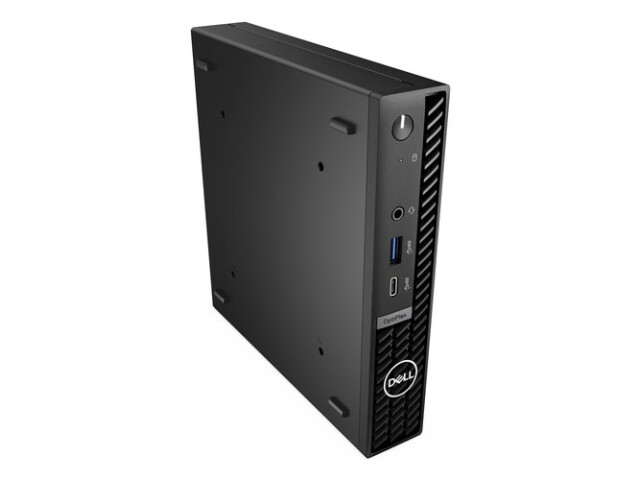

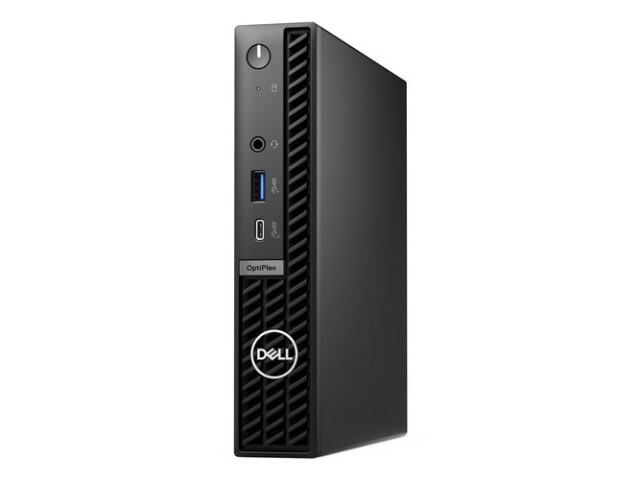

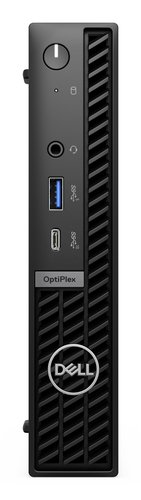

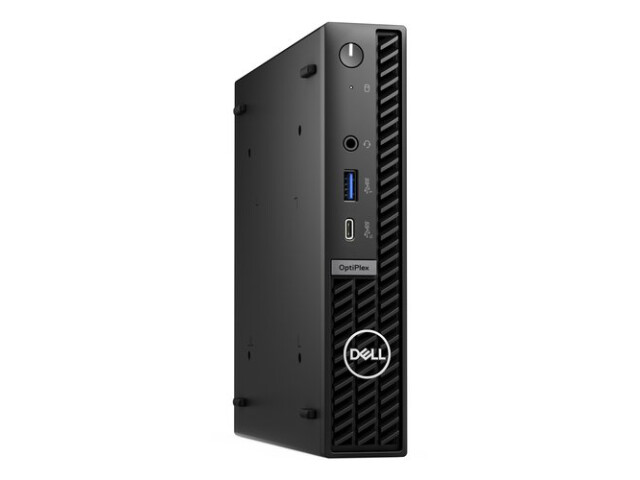

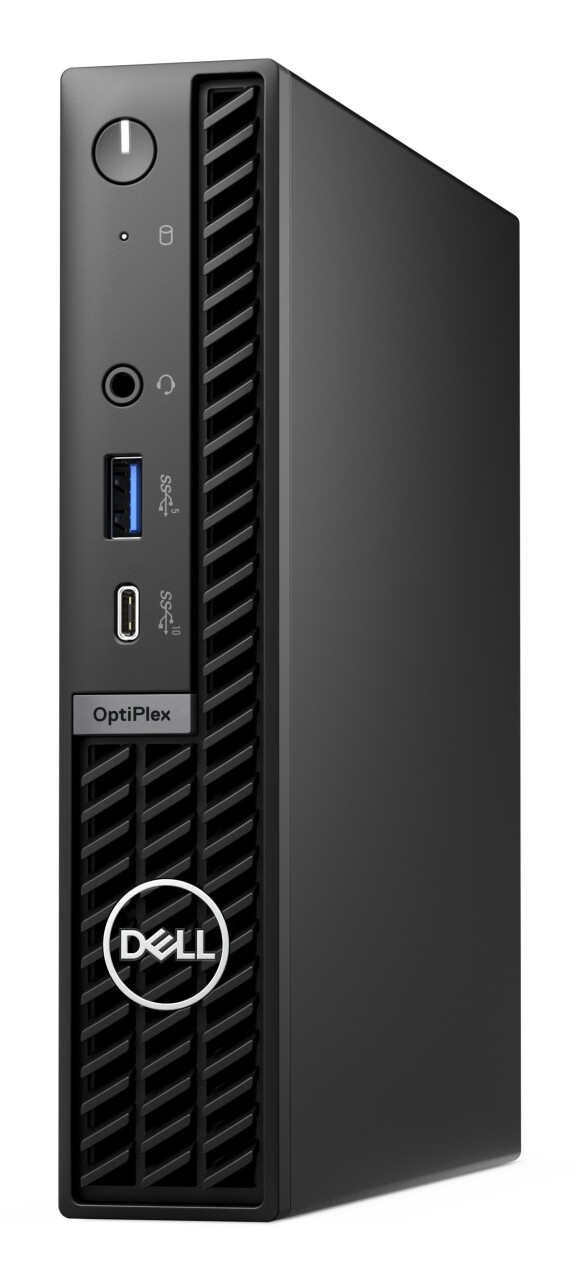

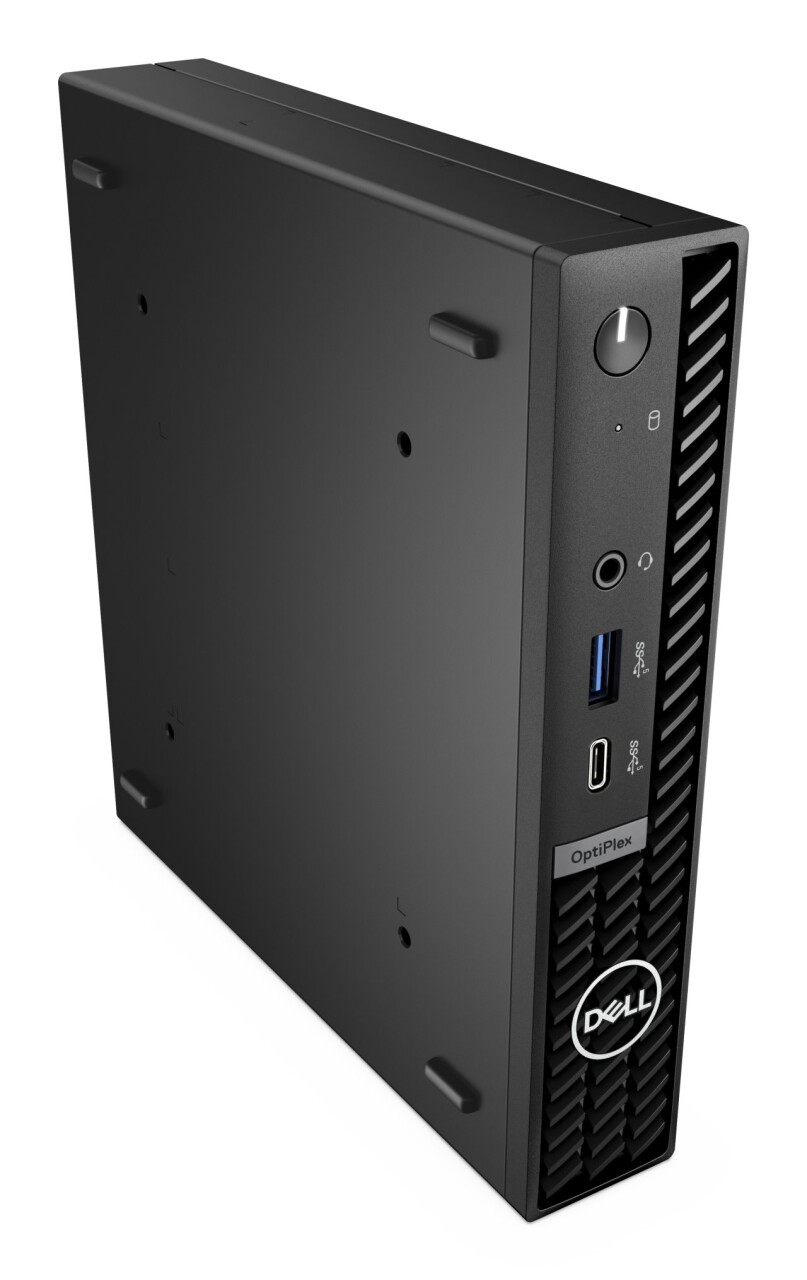

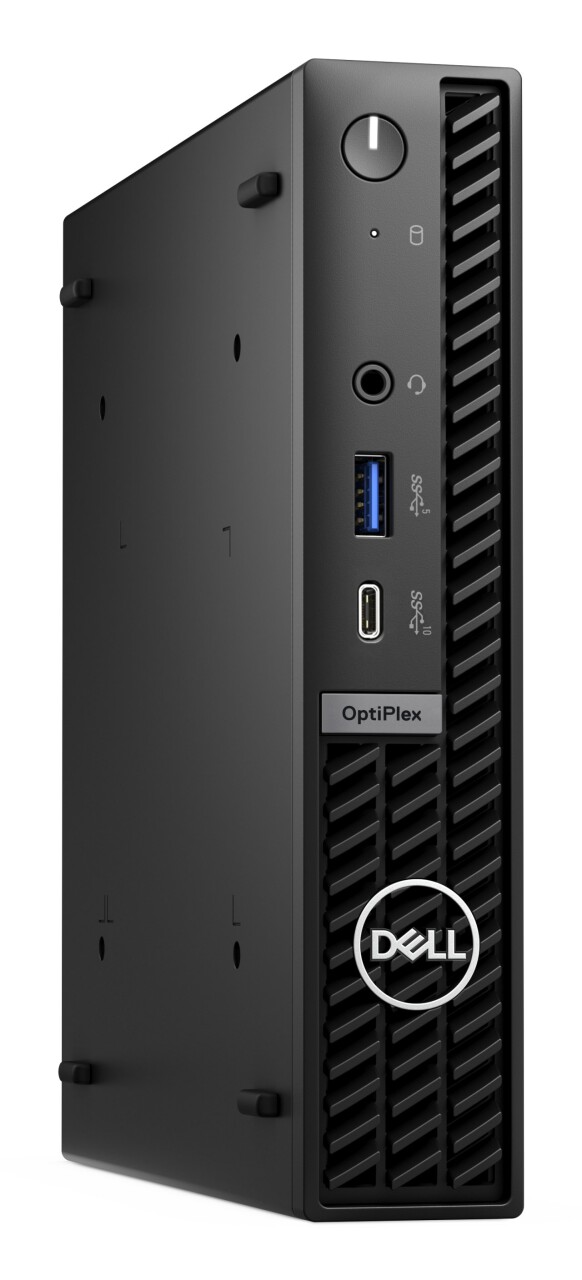

DELL OptiPlex 7020 Intel® Core™ i7 i7-14700T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro MFF Mini-PC Schwarz
Lieferzeit: 1-2 Tage
Prozessorfamilie
Intel® Core™ i7
Prozessorhersteller
Intel
Prozessor
i7-14700T
Speicherkapazität
16 GB
RAM-Speicher maximal
64 GB
Gesamtspeicherkapazität
512 GB
Optisches Laufwerk - Typ
Nein
Speichermedien
SSD
Separater Grafikadapter
Nein
Eingebaute Grafikadapter
Ja
Separates Grafikkartenmodell
Nicht verfügbar
Eingebautes Grafikkartenmodell
Intel UHD Graphics 770
Ethernet/LAN
Ja
WLAN
Ja
Anzahl USB 2.0 Anschlüsse
2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
3
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C
0
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A
0
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C
1
Anzahl Thunderbolt 3 Anschlüsse
0
Anzahl HDMI-Anschlüsse
1
Gehäusetyp
MFF
Produktfarbe
Schwarz
Produkttyp
Mini-PC
Installiertes Betriebssystem
Windows 11 Pro
Stromversorgung
90 W
Breite
36 mm
Tiefe
178 mm
Höhe
182 mm
Anzeige enthalten
Nein
Prozessorgeneration
Intel Core i7-14xxx
Anzahl Prozessorkerne
20
Prozessor-Threads
28
Prozessor Boost-Frequenz
5,2 GHz
Leistungskerne
8
Effiziente Kerne
12
Leistungskern maximale Turbofrequenz
5 GHz
Effizienter Kern maximale Turbofrequenz
3,7 GHz
Leistung Basisfrequenz des Kerns
1,3 GHz
Effiziente Basisfrequenz des Kerns
0,9 GHz
Prozessor-Cache
33 MB
Prozessor Cache Typ
Smart Cache
Anzahl installierter Prozessoren
1
Anzahl unterstützter Prozessoren
1
Grundleistung des Prozessors
35 W
Maximale Turboleistung
106 W
Interner Speichertyp
DDR5-SDRAM
Speicherlayout
1 x 16 GB
Speicherkartensteckplätze
2x SO-DIMM
Anzahl der installierten Speicherlaufwerke
1
Gesamtkapazität der SSDs
512 GB
Anzahl SSD installiert
1
SSD Speicherkapazität
512 GB
SSD Schnittstelle
PCI Express 4.0
NVMe
Ja
SSD-Formfaktor
M.2
SSD-Leistungsklasse
35
Kompatible Speicherkarten
Nicht unterstützt
RAID-Unterstützung
Nein
Hersteller der eingebauten GPU
Intel
On-Board-Grafikadapterfamilie
Intel® UHD Graphics
Ethernet LAN Datentransferraten
10,100,1000 Mbit/s
Top WLAN-Standard
Wi-Fi 6E (802.11ax)
WLAN-Standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Hersteller von WLAN-Controllern
Intel
WLAN-Controllermodell
Intel Wi-Fi 6E AX211
Antennentyp
2x2
Bluetooth
Ja
PowerShare
Ja
Anzahl USB-Anschluss mit PowerShare-Unterstützung
1
HDMI-Version
1.4b
Anzahl DisplayPort Anschlüsse
1
DisplayPorts-Version
1.4a
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
1
Kombinierter Kopfhörer-/Mikrofon-Anschluss
Ja
Gleichstrom-Anschluss (DC)
Ja
Anzahl der rückseitigen USB-Anschlüsse
4
Anzahl der vorderen USB-Anschlüsse
2
Anzahl der vorderen Audioanschlüsse
1
Anzahl der rückseitigen Audioanschlüsse
0
Unterstützte Positionierung
Horizontal/Vertikal
Wasserkühlsystem
Nein
Kabelsperre-Slot
Ja
Slot-Typ Kabelsperre
Kensington
Intel® vPro™ Platform Eligibility
Ja
Marktpositionierung
Business
Motherboard Chipsatz
Intel Q670
Audio-Chip
Realtek ALC3204
Eingebaute Lautsprecher
Ja
Anzahl der Lautsprecher
1
Passwortschutz
Ja
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) Version
2.0
Betriebssystemarchitektur
64-Bit
Betriebssystemsprache
Deutsch, Niederländisch, Englisch, Französisch, Italienisch
Testsoftware
Activate Your Microsoft 365 For A 30 Day Trial
Stromversorgung - Eingang Spannung
100 - 240 V
Stromversorgung - Eingangsfrequenz
50/60 Hz
Betriebstemperatur
10 - 35 °C
Temperaturbereich bei Lagerung
-40 - 65 °C
Relative Luftfeuchtigkeit in Betrieb
20 - 80%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Höhe bei Betrieb
-15,2 - 3048 m
Höhe bei Lagerung
-15,2 - 10668 m
Vibrationen in Betrieb
0,26 G
Vibrationen außer Betrieb
1,37 G
Stoßfestigkeit in Betrieb
40 G
Stoßfestigkeit außer Betrieb
105 G
Nachhaltigkeitszertifikate
TCO, ENERGY STAR, EPEAT Climate +
Enthält nicht
PVC/BFR
Maus in ausgewählten Märkten enthalten
Optische Dell Maus, in der Farbe „Black“ – MS116
Tastatur in ausgewählten Märkten enthalten
Dell KB216 Multimedia-Tastatur, schwarz - Deutsch (QWERTZ)
Gesamter Kohlendioxid-Fußabdruck (kg of CO2e)
91
Kohlenstoffemissionen, Herstellung (kg an CO2e)
59
Kohlenstoffemissionen, Logistik (kg an CO2e)
2
Kohlenstoffemissionen, Energieverbrauch (kg an CO2e)
28
Kohlenstoffemissionen, Ende der Lebensdauer (kg an CO2e)
1
Kohlenstoffemissionen gesamt, mit/ohne Nutzungsphase(kg an CO2e)
62
PAIA-Version
GaBi version 1, 2024
Maximale Auflösung der eingebauten Grafikkarte
7680 x 4320 Pixel
Nachhaltigkeitskonformität
Ja
Packungsinhalt
Internal antenna
Empfohlene Produkte































































































CO₂-Bilanz von Produkten:
1. Dell berechnet die CO₂-Bilanz seiner Produkte in der Regel mithilfe des PAIA-Tools (Product Attribute to Impact Algorithm). http://msl.mit.edu/projects/paia/main.html
2. Die CO₂-Bilanz für Dockingstationen wird aus den entsprechenden Lebenszyklusanalysen (LCAs, Life Cycle Assessments) extrahiert. Sie basiert daher nicht auf der PAIA-Methodik, die für die Berechnung der anderen CO₂-Bilanzen von Produkten in diesem Bericht verwendet wird.
3. Die PAIA-Methode wurde vom Materials Systems Laboratory des Massachusetts Institute of Technology und seinen Partnern entwickelt.
4. Alle Schätzungen der CO₂-Bilanz sind mit Ungenauigkeit behaftet. Dell Technologies gibt das 5. und 95. Perzentil der Schätzung der CO₂-Bilanz an, um diese Ungenauigkeit so gut wie möglich widerzuspiegeln.
(https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
5. Die Emissionsschätzung in diesem Bericht wird anhand des Mittelwerts und der Standardabweichung für das jeweilige Produktmodell berechnet.
6. Die Verwendung von Standardinputs (d. h. keine Primärdaten) und Annahmen über den Ort der Nutzung und andere Felder können zu einer Standardabweichung führen, die in den Berechnungen berücksichtigt werden muss.
7. Wenn für die Berechnungen keine Primärdaten zur Verfügung stehen, verwendet PAIA die Ecoinvent-Datenbank (https://ecoinvent.org/the-ecoinvent-database/).
8. Bei Computing-Produkten für Geschäftskunden und gewerbliche Endverbraucher erfolgte die Berechnung unter der Annahme von Mindestkonfigurationen. Für Server- und Storage-Produkte wurden typische Konfigurationen oder ENERGY STAR-Konfigurationen (https://www.energystar.gov/products) für die Berechnungen zugrunde gelegt.
9. Die Emissionen in der Nutzungsphase wurden für den Einsatzort „Europa“ berechnet, d. h., die Emissionen in der Nutzungsphase beziehen sich nicht auf ein einzelnes Land oder einen einzelnen Standort.
10. Falls Kunden eigene Berechnungsmethoden für die Emissionen der Nutzungsphase heranziehen, können die Gesamtemissionen für die Herstellung, den Transport und das Ende der Nutzungsdauer im Bericht ermittelt und die Emissionen der Nutzungsphase ausgeklammert werden.
11. Die Annahme für die Nutzungsdauer auf Ebene der Produktreihe lautet wie folgt: Desktop-PC, Laptop – 4 Jahre, Display – 5 Jahre und Server – 4 Jahre.
12. Detaillierte Annahmen sind den Produktdatenblättern in den Dell Technologies Berichten zu entnehmen (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
13. Die Ergebnisse des PAIA-Tools können sich im Laufe der Zeit ändern, wenn die Methodik verbessert und die Datensätze aktualisiert werden. Die PAIA-Version, die zur Berechnung der Emissionen verwendet wird, wurde bei jedem Datensatz im Bericht angegeben.
14. Verwendete Maßeinheiten: Für das Treibhauspotenzial wurden kg CO₂-Äquivalent oder MT (metrische Tonne) CO₂-Äquivalent (CO₂e) als Einheit verwendet.
15. Ab Juni 2024 enthält das Daten-Dashboard Werte des CO2-Fußabdrucks von Produkten, die mit dem Dell PCF-Rechner (Dell Product Carbon Footprint Calculator) berechnet wurden. Es ist wichtig zu beachten, dass der Standardstandort, der für diese Berechnungen auf dem Daten-Dashboard verwendet wird, Europa ist. Um auf die für die USA und China berechneten Werte des CO2-Fußabdrucks von Produkten zuzugreifen, lesen Sie bitte das Produkt-CO2-Fußabdruck-Dokument auf Dell.com.
